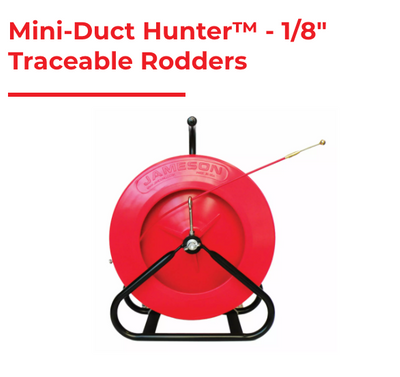

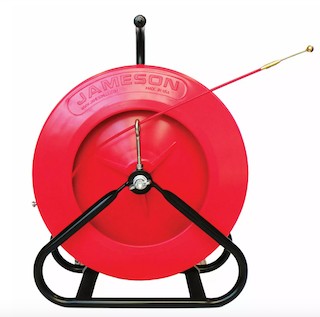

Mini Traceable Rodders
The Mini-Duct Hunter™ is a traceable duct rodder that offers a non-invasive solution for locating and mapping underground ducts and pipes measuring between ½ and 1 ½ inches. The detectable fiberglass rod incorporates a 22 AWG copper trace wire that can be located at depths up to 10 feet. When the energized Mini-Duct Hunter™ rod is pushed into pipe, the signal radiates outward to the surface. A signal receiver detects the frequency applied to the Mini-Duct Hunter™, allowing the pipe to be traced inside walls, floors or underground. Accessory kit is included.
- 2.5″ Bend Radius
- Trace sewer laterals (up to 4 inches in diameter) to avoid cross bores
- Locate fiber optic cable in plastic pipe without tracer wire
- Locate fiber optic micro-duct during fiber-to-the-home applications
- Fiberglass will not rust during plumbing applications
- Handle and lightweight frame for easy transport
- For use in conduit with an inside diameter between 1/2 and 1-1/2 inch
- Includes 100 ft. of 3/16-inch diameter traceable fiberglass rodAccessory Kit includedDimensions: 22″ X 17″ X 7″
