Locator Sonde
Radiodetection sondes for underground utility locating, from 0.25 inches up to 2.51 inches in diameter.
There's no job too big or small. Locator Sonde equipment can help you tackle them all. Locator Sonde equipment can be screwed onto a duct rodder for easy underground utility locating, even with non-conductive utilities. Locator Sonde equipment is available from a 0.25 inch diameter up to our largest sonde, at 2.51 inches.

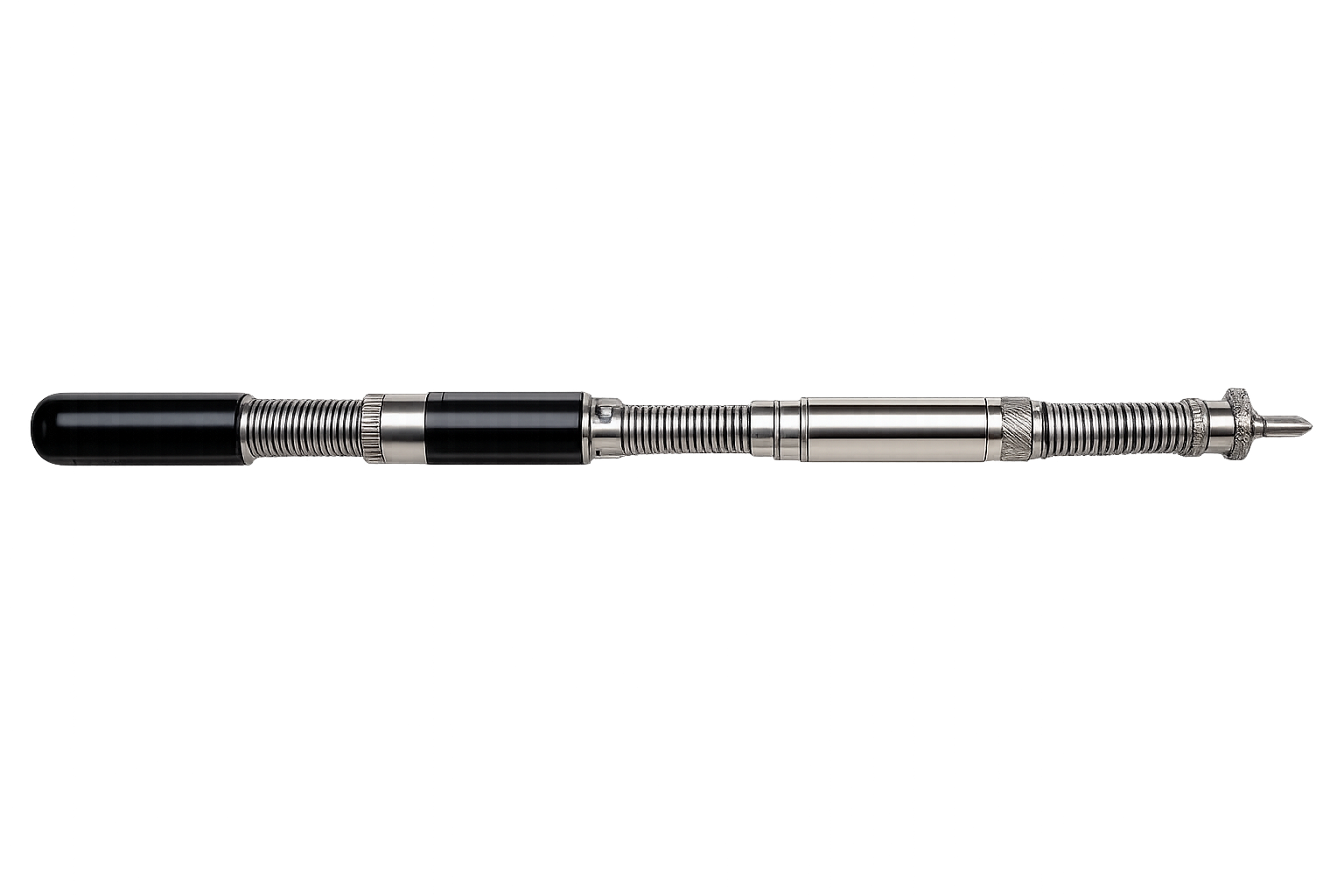

Locator Sonde Spring Coupling fits between the end of a Flexrod and the sonde to ease the sonde around bends or reduce the shock to the sonde when hitting the wall of a pipe. The spring coupling has an M10 male thread and an M10 female thread.
Use these Locator Sondes with Radiodetection underground utility locators and Jameson duct rodders to pinpoint sonde locations and depths. A locatable conduit rodder is the best underground utility locating tool for locating the entire rod length.
Which Locator Sonde is right for your work?
Tell us how you work and we will point you to the right sonde:
Smallest ducts and tight access (0.25-inch diameter) → S6 Micro Sonde
Compact locating with a plain end cap → S13 Super Small Sonde
Everyday pipe and duct locating → S9 Minisonde or Standard Sonde
Sewer lines needing deeper reach (up to 26 feet) → Sewer Sonde
Maximum locate depth (up to 49.2 feet) → Super Sonde
Extending reach into longer runs → Flex Rod or FlexiTrace
Locator Sonde Lineup
BendiSonde
This 3 section Sonde measures at 18.8" x 0.9". Locatable to 20' with a 512 Hz frequencies. 1 battery.

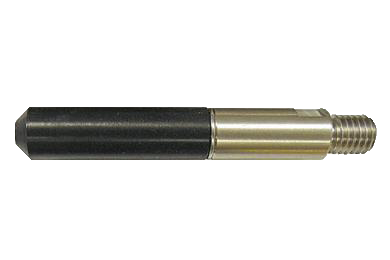

S13 Super Small Sonde
Measuring 0.5" x 2.7" with a plain end cap. Locatable to 8.2'. Supplied as a kit to include Sonde, 2 batteries and a case.

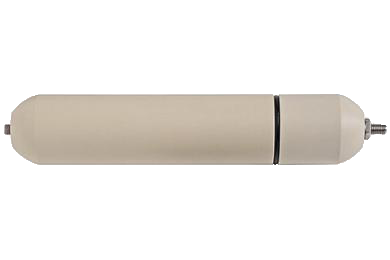

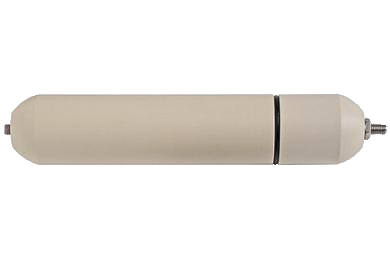

Super Sonde
This is a self-contained, battery-operated Sonde, measuring 2.51" x 12.51". It can be connected to a Flexrod for locating pipes and ducting etc. It transmits on 33kHz and can be normally located to a maximum depth of 49.2'.

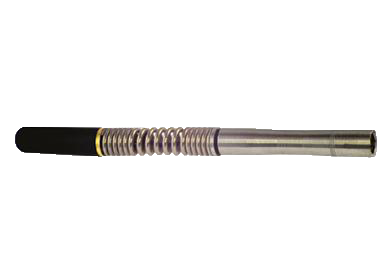

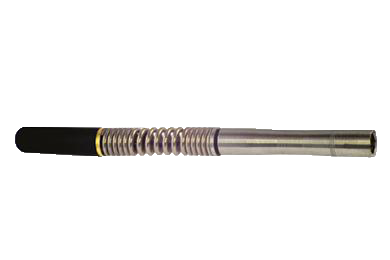

S6 Micro Sonde
Measuring 0.25" x 3.5". Locatable to 6.5'. Supplied as a kit to include Sonde, flexible adaptor, 2 batteries, and a case.

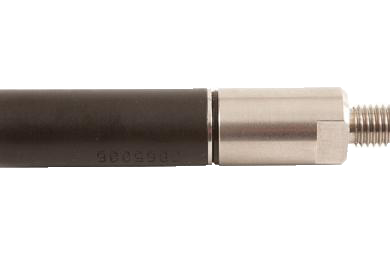

S18 Sonde 33kHz
This is a self-contained, battery-operated sonde, measuring 0.70" x 3.22" (18mm x 82mm). It can be connected to a Flexrod for locating pipes and ducting etc.

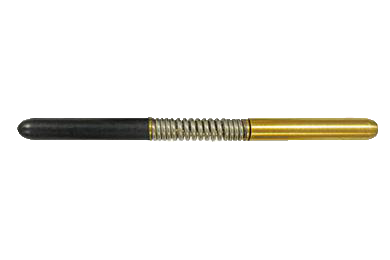

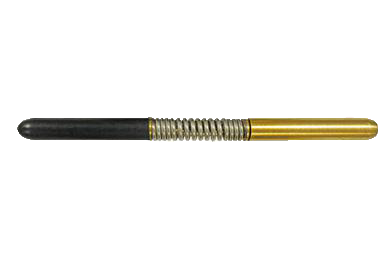

S9 Minisonde
Measuring 0.35" x 5.4". Locatable to 13'. Supplied as a kit to include Sonde, 2 batteries, and a case.

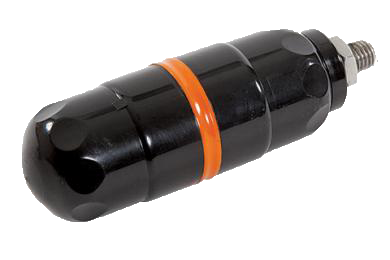

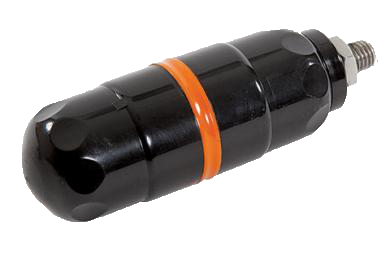

Standard Sonde
This is a self-contained battery operated Sonde, measuring 1.53" x 4.13". It can be connected to a Flexrod for locating pipes and ducting etc. Available in 3 frequencies with a locate depth of 16'.
Flex Rod
The Flexrod reel holds 197' or 394' fiberglass rod used for tracing pipes and ducting, etc.

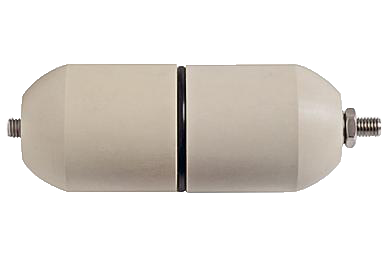

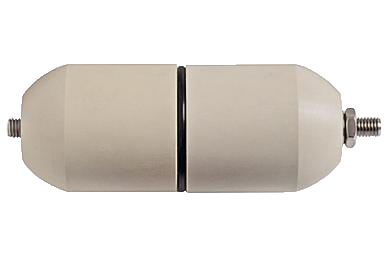

Sewer Sonde
This is a self-contained, battery-operated sonde, measuring 2.51" x 6.61". It can be connected to a Flexrod for locating pipes and ducting etc. It transmits on 33kHz and can normally be located to a maximum depth of 26'.
FlexiTrace
The FlexiTrace reel holds 164' or 260’ of small diameter rod. The rod itself can be energised by a Radiodetection transmitter* or Genny and inserted into pipes as small as 0.47".
Looking for Prototek Sondes?
Locator Guys also carries Prototek's line of sonde transmitters, a separate lineup available alongside Locator Sonde.
Mini Sondes for Precision Pipe & Duct Locating
Navigate tight bends, small-diameter pipes, and hard-to-reach underground lines with high-performance mini sondes. These compact, self-contained transmitters are designed for precision locating inside sewer lines, ducts, and nonmetallic utilities—delivering accurate signal tracking where larger sondes can’t go.

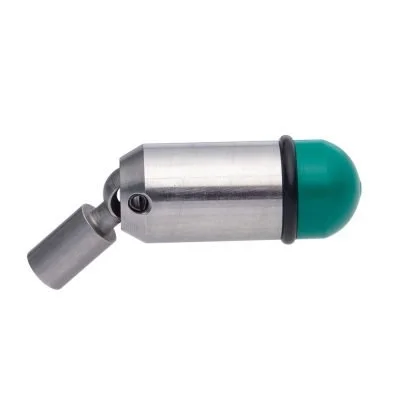

FM-05 | 512 Hertz Mini Snakable Transmitter
For locating in small lines and p-traps
The smallest snakable transmitter in our 512Hz line. This mini transmitter still has the power to get the job done. The FM-05 will help you locate in small cast iron and nonmetallic lines and with the swivel drophead as the battery cap it will allow you to pass through P-traps and tight elbows. Runs on Alkaline batteries only. Silver Oxide will not work.
Battery caddie and 2-357/A76 button cell Alkaline batteries included
Drophead is included with a size 12-24 female threaded end
Easily attaches to a 3/16” push rod
Replacement dropheads are available for purchase
Water tight

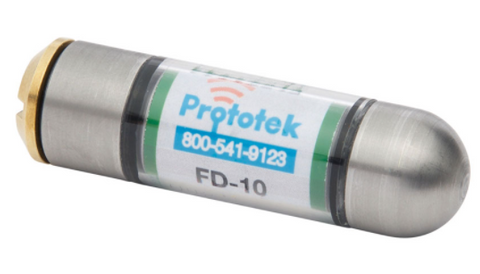

FD-10 | 512 Hertz DuraSonde Transmitter
With its new and more durable and compact design the FD-10 is perfect for locating in lines as small as 2 inches. The FD-10 transmits using the industry standard 512 Hz frequency for locating in cast iron and nonmetallic lines.
Stainless Steel head for durability
Encased in a strong polycarbonate tube
Watertight
Brass battery cap and 2 N cell batteries included
Dropcap available for use with 1/4″ pushrods (sold separately)
Our Spring Carriers are recommended to help protect your transmitter
Mid-Range Sondes for Versatile Underground Locating
Handle everyday locating jobs with confidence using mid-range sondes built for versatility, signal control, and consistent performance. Designed for standard pipe diameters and moderate depths, these sondes deliver reliable signal transmission for sewer lines, ducts, and nonmetallic utilities across a wide range of jobsite conditions.

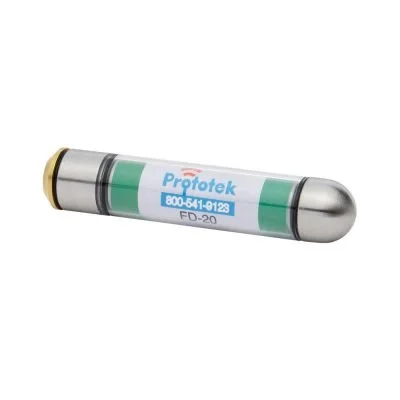

FD-20 | 512 Hertz DuraSonde Transmitter
The FD-20 is the most popular transmitter in our 512 Hz line for locating in cast iron and nonmetallic lines. And now with its new more durable design the FD-20 is ready to transmit even in the toughest terrain.
Replaces our FV-20 transmitter
Steel head for durability
Encased in a strong polycarbonate tube.
Watertight
Brass battery cap and 1 AAA alkaline battery included
Will work with any receiver that uses the 512 Hz frequency. For best results use one of our LineFinders
Our Spring Carriers are recommended to help protect your transmitter

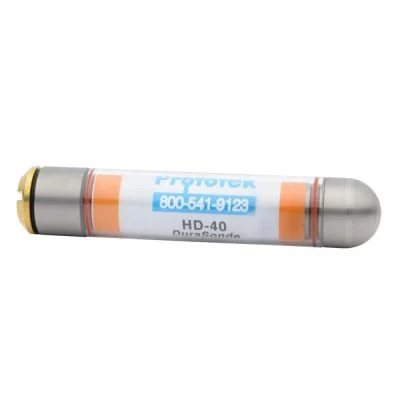

HD-40 | 8 KiloHertz DuraSonde Transmitter
The HD-40 has been redesigned to be more durable. This 8 KiloHertz frequency DuraSonde transmitter is used to transmit in nonmetallic lines only. If you are locating around power lines this powerful highly efficient frequency will greatly reduce interference.
Replaces our HV-40 transmitter
Stainless steel head for durability
Encased in a strong polycarbonate tube
Non-metallic locating only
Water tight
Brass battery cap and 1 AAA alkaline battery included
For easy use with a push rod or sewer machine check out our Spring Carriers or Dropcap
Our Spring Carriers are recommended to help protect your transmitter

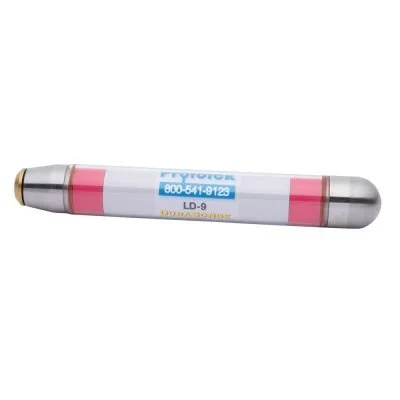

LD-9 | 16 Hertz DuraSonde Transmitter
The LD-9 is our smaller of the 16 Hz line of durasonde transmitters. LD-9 has a new more durable design and stronger signal. If you are going to locate in ductile iron or steel pipes this transmitter will do the job. This transmitter will also work great in cast iron where there is a lot of electrical interference.
Replaces our SB-9
Best used when locating in Steel or Ductile Iron
Stainless Steel head for durability
Encased in a strong polycarbonate tube
Water tight
Brass battery cap and 3 AAA alkaline batteries included
Long-Range Sondes for Deep & Extended Utility Tracing
Locate deeper utilities and trace longer pipe runs with high-performance long-range sondes engineered for maximum signal reach and accuracy. These sondes are designed for demanding applications where depth, distance, and signal integrity are critical.

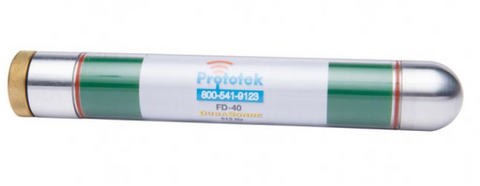

FD-40 | 512 Hertz DuraSonde Transmitter
The FD-40 is the largest in our 512 Hz line of DuraSonde transmitters. Now with a new more durable design it is ready to locate in deep cast iron and nonmetallic lines.
Replaces our FV-40 transmitter
Best used when mounted on a tractor camera
Metal Endcap for durability
Encased in a strong polycarbonate tube
Watertight
Brass battery cap and 4 C cell batteries included
FD-40 | 512 Hertz DuraSonde Transmitter
The FD-40 is the largest in our 512 Hz line of DuraSonde transmitters. Now with a new more durable design it is ready to locate in deep cast iron and nonmetallic lines.
Replaces our FV-40 transmitter
Best used when mounted on a tractor camera
Metal Endcap for durability
Encased in a strong polycarbonate tube
Watertight
Brass battery cap and 4 C cell batteries included

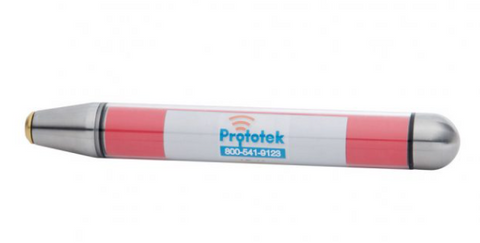

LD-14 | 16 Hertz DuraSonde Transmitter
The LD-14 is the larger in our line of 16 Hz DuraSonde transmitters. The LD-14 has a new more durable design. If you are locating in ductile iron or steel pipes this transmitter will do the job. This transmitter will also work great in cast iron where there is a lot of electrical interference.
Replaces our SB-11
Best used when locating in Steel or Ductile Iron
Stainless Steel head for durability
Encased in a strong polycarbonate tube
Water tight
Brass battery cap and 4 AA alkaline batteries included
Our Services
In addition to providing our customers with the best underground utility locator equipment for their needs, Locator Guys offers free, on-site training with every purchase. Our experienced team will not leave your work site or location until your technicians are fully trained and feel comfortable using the equipment. We will also provide your staff with additional, free, on-site training once a year to make sure you are completely satisfied with the utility locator equipment you have purchased.
In addition, we offer free on-site demonstrations of products as well as free customer support 24 hours a day, seven days a week, and free loaners when your equipment is being serviced. We offer our customers, customer service at its best.
How to choose
The right Locator Sonde depends on the pipe or duct you're working in and how deep it runs, not on brand or price alone. A few things to weigh:
Pipe or duct size. Match the sonde diameter to the smallest pipe or duct you need to fit through, from 0.25 inches up to 2.51 inches across the lineup.
Locate depth needed. Depth ratings range from about 6.5 feet up to nearly 50 feet across the lineup, so match the sonde to how deep your lines actually run.
Frequency. Available frequencies vary by model. Confirm the sonde's frequency works with the locator you already run.
Reach and rod length. A Flex Rod or FlexiTrace reel extends how far you can push a sonde into a line.
Not sure which Locator Sonde is right for your work?
Talk to a specialist. We will review your applications, walk through the tradeoffs, and recommend the right sonde, with free on-site training and ongoing support included.
