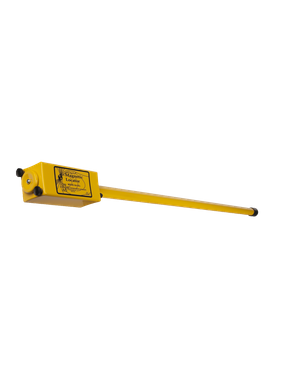

Schonstedt GA-52Cx Magnetic Locator

Detects the magnetic field of iron and steel objects, with unmatched sensitivity.


GA-52Cx Features

Schonstedt’s underground magnetic locators have been setting the standards for reliability and dependability for over 50 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions.

  • High levels of sensitivity allow you to find what you’re looking for quickly, without the risk of passing over your target.
  • 85% of the Surveyor market can’t be wrong.

Easy-To-Use

The GA-52Cx Locator detects the magnetic field of iron and steel objects, with unmatched sensitivity.

Only two Controls! Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

  • High Sensitivity with 5 Levels
  • Audio Output
  • No response to aluminum, brass, or copper
  • HeliFlux® sensors
  • Modular construction; high performance components
  • 7-year warranty

INPUT POWER

Supplied by two 9V batteries

BATTERY LIFE

40 hours (intermittent usage)

OUTPUT

Approximately 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity.

WEIGHT

Approximately 2.5 lb (1.13 kg)

OPERATING TEMP

-13° to 140°F (-25° to 60°C)

OVERALL LENGTH

42.5" (107.4 cm)

WATERPROOF LENGTH

34.5" (87.6 cm)

NOMINAL SENSOR SPACING

20" (50.8 cm)

CONSTRUCTION

Rugged, modular all solid state in aluminum casing
