Sewer Inspection Van - Demo Unit
The Complete Sewer Inspection System. Ready to Roll.
1,200' — Mainline Inspection Range 200' — Lateral Inspection Range 120× — Optical + Digital Zoom 8,000W — Onboard MEPs Power System
What You're Getting
This demo unit comes equipped with a LETS Sidewinder lateral inspection system installed, plus your choice of the Aries Voyager HD mainline camera system — all pre-installed, tested, and ready to go.
1. Aries Voyager HD Pipeline System (Model DC400 / HD400 / TR400)
- 120× zoom camera (10× optical + 12× digital) with 1080p output
- Multi-axis infinite pan and tilt rotation with integrated self-cleaning lens wiper
- "Starlite" low-light amplification — 4 user-selectable steps
- Steerable self-propelled transporter for 6" relined to 24" lines
- 1,200' Kevlar-strengthened cable on CANbus-controlled motorized reel
- Auto-iris, auto-focus with manual override and sapphire scratch-resistant lens window
- On-screen diagnostics: pressure, temp, operating hours, LED current, firmware revision
- Handheld at-manhole pendant for reel and tractor control
- 2-year dealer warranty included

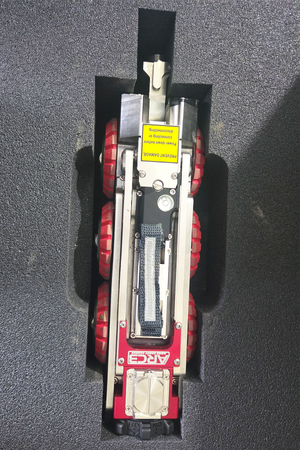

2. LETS Sidewinder Lateral Inspection System (Model LE400)
- Simultaneously inspect mainlines to 1,200' and laterals to 200' from a single deployment

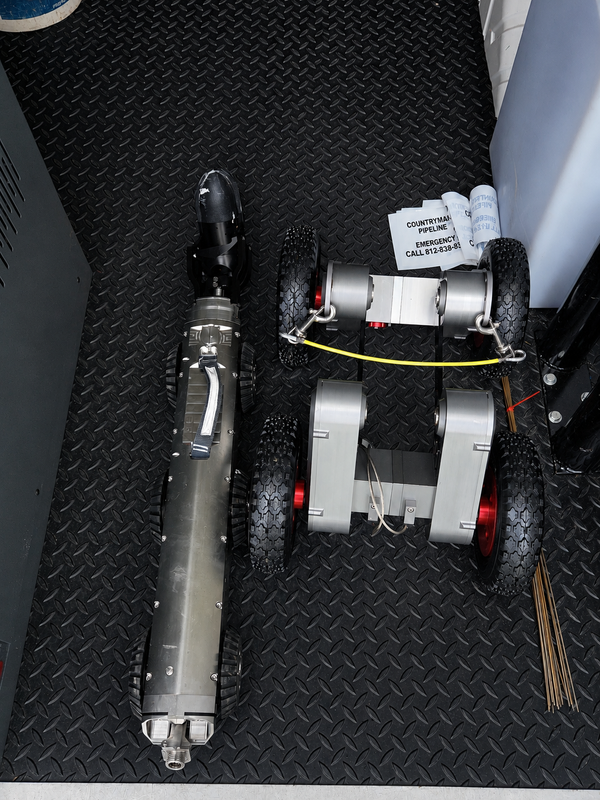

- Compact tractor navigates pipes 6" and larger with six-wheel standard configuration
- Lateral camera launches with or against the flow at 135° — push and rotate through wyes and bends
- Forward HD camera monitors mainline while lateral camera is live
- Choice of self-leveling or Pan & Tilt lateral camera with in-pipe lens wiper
- Telescoping chute with five discrete positions for larger pipes
- Integrated 512Hz or 8K locating beacon
- CANbus digital controller with dual joystick, graphical roll-angle display, and rollover alerts
- Auto lateral retrieve — less manual effort, faster turnaround
Vehicle & Outfitting - A Mobile Command Center. Ready Before You Arrive

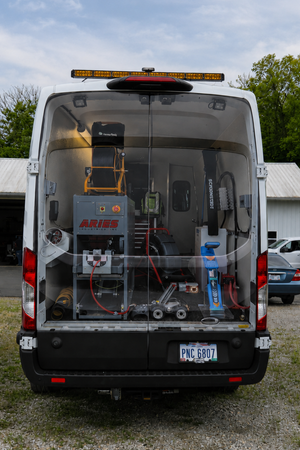

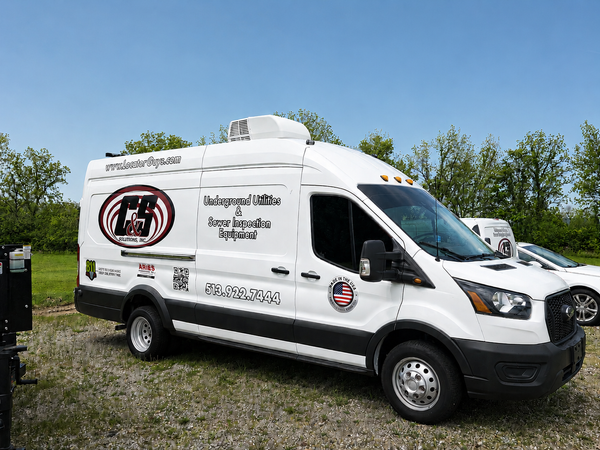

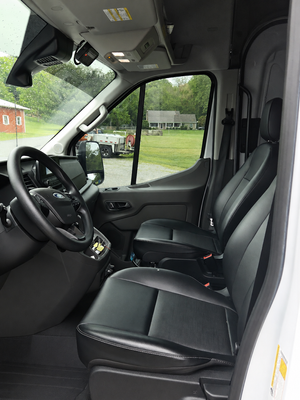

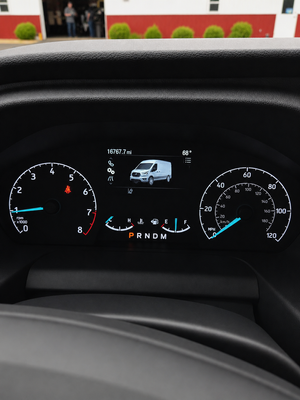

Built on a Ford Transit 350 HD extended high-roof chassis and fully outfitted by Aries, this demo unit is ready to work on day one.

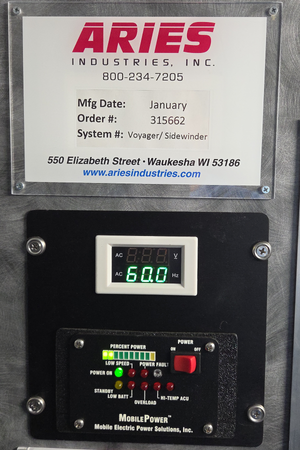

Onboard MEPs Power System Automatic transfer switch lets you run on the onboard MEPs power system or plug into house power with the included 35' cord. No separate power source needed.

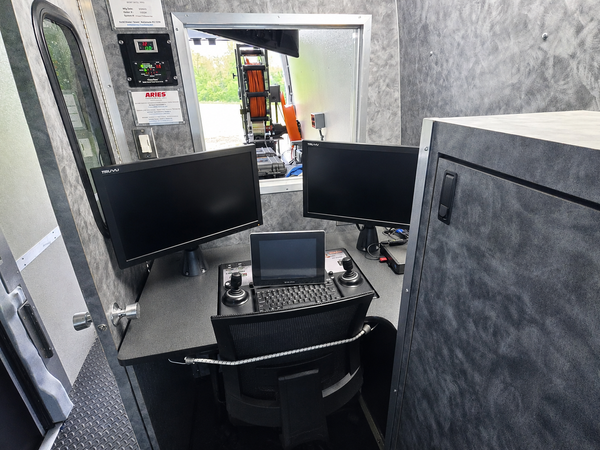

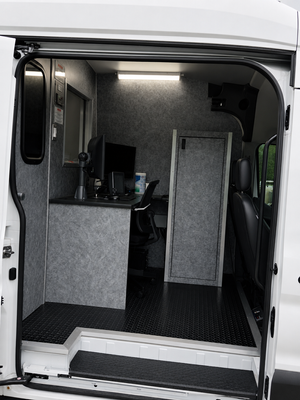

Control Room Built-In Ergonomic control desk, rack-mounted industrial hardened computer (Intel i7, 16GB RAM, 960GB SSD), dual 22" LCD monitors, and wireless keyboard — all inside the van.
Climate Controlled Roof-mounted 13,500 BTU A/C with heat strip plus a 1,500W wall heater — operators stay comfortable in any season, any weather.
Full Safety & Lighting Package LED traffic advisor, roof-mounted amber strobes, adjustable rear flood lights, DOT-rated safety kit with fire extinguisher, triangles, and flares — all included.
On-Board Washdown System 19-gallon water tank with demand pump and 25' retractable hose — clean equipment right at the manhole before it comes back in the van.

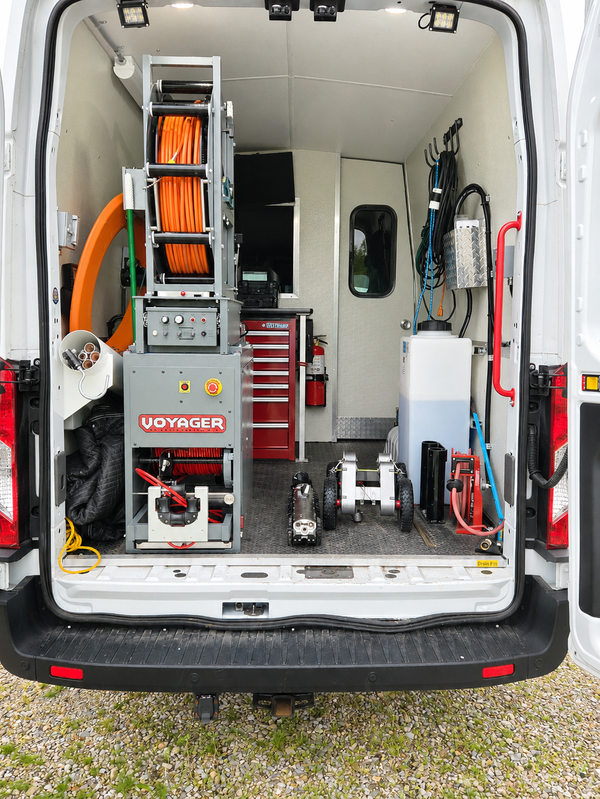

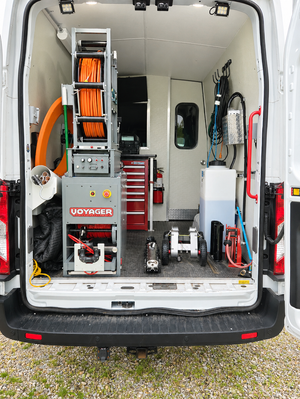

Equipment Room & Storage Dedicated rear equipment room with work bench, 7-drawer locking tool chest, downhole pole storage tube, 500lb equipment hoist, and tie-down hooks.
Included With Every System - 2 Days of On-Site Training by Aries Staff
Purchase includes in-field training delivered directly by Aries personnel — so your crew gets hands-on with the equipment, in the field, from day one.
Ready to Put This System to Work?
Demo units move fast. Contact us today and call for the best price.
