Schonstedt Rex Multi-Frequency Pipe & Cable Locator

Multi-frequency pipe and cable locator for all utilities.

Rex Multi-Frequency Pipe & Cable Locator

Rex is Schonstedt’s newest underground pipe and cable locator for sale, recommended for all underground utilities: water and sewer, electric, telecom, and gas.

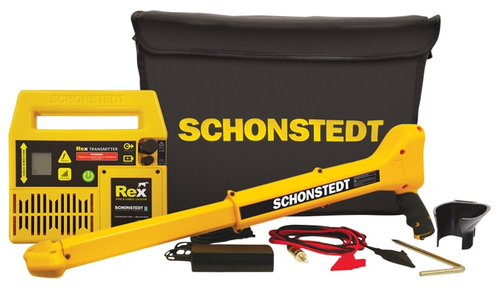

Rex is a multi-frequency locator with a price tag comparable to single-frequency locators. The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag.

Rex Standard Features

  • Ultralight Design: Receiver + Transmitter = Under 7lbs
  • Compact & Portable: Receiver retracts for easy carrying
  • Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz plus 50/60 Hz passive and 512 Hz sonde detection.
  • Schonstedt’s 3-year warranty – Best in the industry.

Transmitter

OPERATING FREQUENCY:

82kHz, 33kHz & 512 Hz

OPERATING MODES

Conductive, Inductive, and Inductive Clamp

MAX. OUTPUT POWER: (CONDUCTIVE MODE @ 1000 Ω LOAD)

512 Hz - 1/2, 1, 2 or 5 W

33 kHz - 1/2, 1, 2 or 5 W

82 kHz - 1/2 or 1

BATTERY TYPE:

Rechargeable NiMH pack (12V)

BATTERY LIFE

8 Hours (intermittent use)

CHARGING:

Internal Smart Charger powered by AC/DC power adapter

DIMENSIONS

10” x 10.25” x 1.75”

(25.4 cm x 26 cm x 4.5 cm)

WEIGHT (INCL. BATTERIES):

3.5 lbs (1.6 kg)

OPERATING TEMP

-4°F to 140°F (-20°C to 70°C)

BACKLIGHTING:

White LED array

WATER AND DUST RESISTANCE

Rated IP54

Rex Accessories

The following accessories are available for Rex:

    • Standard Headset (p/n: XT40000)
    • 3″ Inductive Signal Clamp (p/n: TM60000)
    • 5″ Inductive Signal Clamp (p/n: TM60001)
    • 7″ Inductive Signal Clamp (p/n: TM60002)
    • Large Heavy Duty Clips – p/n: TM70001
    • Small Heavy Duty Clips – p/n: TM70002
    • Sondes:
      • 512 Hz Sonde (p/n: TM50910)
      • 512 Hz Micro Mini Sonde (p/n: TM50911)
    • Transmitter Battery Replacement Kit (includes Spare Battery, Spare Charger, & 4 Screws) (p/n 600072)
      • Components also sold separately: Spare Battery (p/n FD50040) & Spare Charger (p/n 600071)
