Sensors and Software LMX200™

Affordable. Simple. Easy to Use.

Call 513-922-7444 for Pricing

Radiodetection 1 (4) (1).png
  • Sensors And Software LMX200™
  • Sensors And Software LMX200™
  • Sensors And Software LMX200™
  • Sensors And Software LMX200™
  • LMX200 Mini Report
  • Sensors And Software LMX200™
  • Sensors And Software LMX200™

LMX200™ is the Premier Ground Penetrating Radar (GPR) Utility Locating Equipment in the market today.

The Radiodetection LMX200™ provides unprecedented insights and target confidence to detect traditionally non-locatable subsurface features such as:

  • Non-metallic pipes, including PVC and asbestos cement
  • Underground Electrical Cable
  • Concrete storm and sewer systems
  • Utilities where installed tracer wiring has failed
  • Underground storage tanks and drainage tiles
  • Septic system components
  • Non-utility structures such as vaults, foundation walls and concrete pads

Public utility systems and local governments require that the positions of underground systems are located and marked. This helps in planning projects and avoiding risks and hazards. The LMX200™ builds on the capabilities of the LMX100™ and adds further features to help you locate and map these utilities. It adds the powerful Grid Scan mode and the ability to use an external GPS to take full advantage of SplitView and MapView. The LMX200™ Enhanced upgrade also allows data export for post-processing, archiving, reference and further mapping capabilities.

  • Forensics 1 (1).jpg
  • Forensics 2 (1).jpg
  • Forensics 3 (1).jpg

LMX200™ for Forensics

LMX200™ uses ground penetrating radar (GPR) technology to enable law enforcement to quickly and effectively search/survey for evidence buried under the ground.

The advantage of GPR compared to other commonly-used subsurface search technologies, such as metal detectors, is its ability to detect both metallic and non-metallic objects. LMX200™ can locate:

  • Clandestine graves
  • Drugs or money buried in metal or plastic containers
  • Buried weapons and ammunition stashes

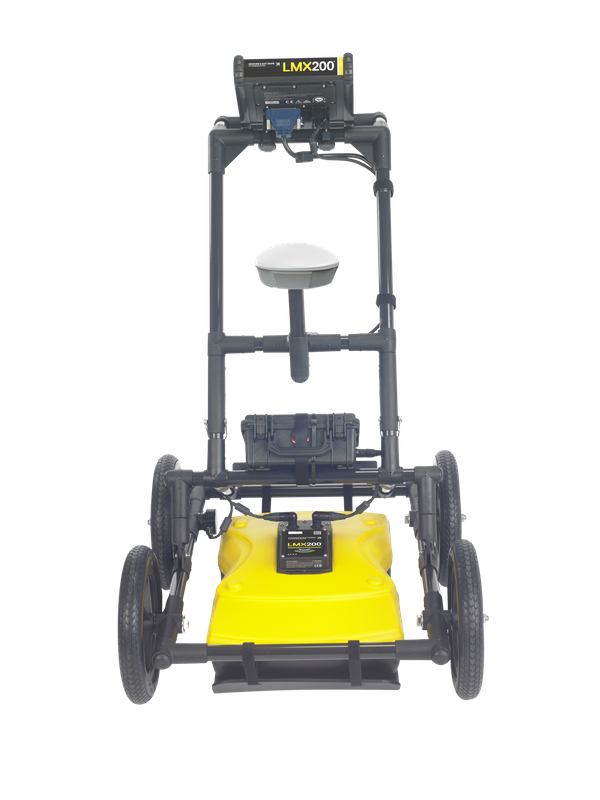

Sensors And Software LMX200™

The Simple, Affordable Way To Locate & Mark™ Utilities In The Field

  • High visibility touch screen display unit
  • Free lifetime system software updates
  • User selectable languages
  • Metric and US Standard units
  • GPR Sensor
  • Patented ultra-wideband (UWB) 250 MHz GPR antenna
  • DynaT™ for Dynamic Target enhancement
  • Offers perfect balance of depth penetration (up to 8m/26 ft) & high resolution
  • Lead Acid Gel Cell Battery - Long lasting and swappable
  • Produce instant on-site reports from your display unit
  • Integrated GPS receiver for geo-referencing data
  • Lightweight Fiberglass Cart Frame - No metal parts that would interfere with GPR signals. Rugged, all-terrain cart with integrated odometer, easily maneuverable over any surface.
  • USB for easy data transfer
  • Built-in Wi-Fi capability

Most advanced precision locators: Sensors and Software LMX200™
