Fault Wizard 2 Primary Cable Fault Location System

AC and DC Powered Unit


The most compact, full featured arc reflection system at the fraction of the cost.

Three Modes Of Operation In One Compact Unit

  1. High Voltage TDR Arc Reflection technology with automatic readout of distance to fault (no interpretation of complicated waveforms)
  2. Cycle Thump Mode for Pinpointing
  3. DC Hi-Pot Mode

Adjustable Output Voltage - Truly Portable

  • Battery powered, weighing only 50lbs.

Fault Wizard Software Included

  • Allows optional waveform viewing on a computer

Specifications

  • Weight: approximately 23 kg (50lbs.)
  • Size: 25.4 x 45.7 x 48.2 cm. (10" x 18" x 19" in.)
  • Power Source: 120VAC Power Source or Internal Batteries (two 12V sealed rechargeable lead/acid) or Optional: Auxiliary Pack
  • Charge Voltage: 0 to 10 kV
  • Capacitance: 7 uF
  • Max Energy: 350 J per pulse
  • Output Current: 12.5mA for Hi-Pot Mode
  • Hi-Pot Voltage: 0 to 10 kV
  • Output Cable Length: 4.5M (15ft)
  • Option 1: Standard Alligator Clips
  • Options 2: MC Style Connector

Fault Wizard, Cable Fault Locator

  • • Truly portable and user friendly.
  • • Simple operation results in distance readout to the fault.
  • • No interpretation of complicated waveforms required.
  • • Automated arc-reflection technology (AART) developed by IUP.
  • • Cycle thump mode for pinpointing faults.
  • • Variable charge voltage (0 to 10 kV).
  • • Waveforms captured and viewed with IUP Fault Expert Software.
  • • Cable faults located up to 3,000 meters (1.9 miles).
  • • Battery operated for use in remote locations.
  • • Made in the USA.

Battery Pack

  • • Auxiliary "backup" lead-acid battery package for the Fault Wizard.
  • • Allows an extra hour of continuous cycle pulse operation.
  • • By-passes the internal batteries, in case one of the internal batteries has failed.
  • • Grey polycarbonate Battery Box with chrome handles and black connector port.
  • • Black Battery Pack charger with 115 VAC equipment cord.
  • • Grey cables attach the Battery Pack to the 24 Volt Input of the Fault Wizard Panel.
  • • Made in the USA

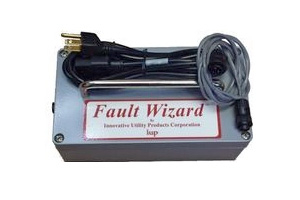

AC Pack

  • • Powers the Fault Wizard using external 100-240 VAC, 50-60 Hz power source.
  • • By-passes the internal batteries, in case one of the internal batteries has failed.
  • • Grey cables attach the AC Pack to the 24 Volt Input of the Fault Wizard Panel.
  • • Black cord connects the AC Pack to an electrical outlet.
  • • Made in the USA

The Fault Wizard 2 is a compact portable, relatively inexpensive underground fault locator system for primary underground cable.

The system is AC powered and batter powered ad can easily be used in remote locations.

The system is very easy to operate with minimum training required.

The display shows the distance in feet or meters to the fault location. The display also shows the battery voltage, the velocity of propagation setting, the charge voltage, the fault type (open or short), and whether the system is armed for waveform storage. The wave forms can be retrieved for viewing on a computer (laptop of desktop) by utilizing the Fault Wizard 2 software. However, viewing of the wave forms is not required since the Fault Wizard 2 gives and automatic readout of the distance to fault location.

The Fault Wizard 2 can be used to perform arc reflection on cable systems (single sections, half-loops, radials, etc.) for quick power restoration. The Fault Wizard 2 will ignore the transformer reflections and "lock" on the fault location. This allows the user to quickly determine the faulted cable section in the system. The Fault Wizard 2 will locate faults up to approximately 3 km (10,000 fee). The impulse voltage is variable, which allows lower voltage pulsing and minimum damage to cables. The system has a cycle mode for use in pinpointing the fault with a headset listening device. However, the Fault Wizard 2 has sufficient power to often be felt and heard above ground.In cycle mode, the Fault Wizard 2's internal batteries will last over 40 minutes (full battery charge) and deliver a 350 J pulse (at full voltage) every 6 seconds. The cycle rate is faster at lower voltage settings. The system also has a hi-pot mode (DC output variable from 0 to 10 kV) for checking the breakdown voltage of the fault in an isolated section of the cable or the integrity of an isolated section of cable (to insure the fault is in that section of cable before re-energizing the system).

POWER TO FAULT WIZARD 2

The battery voltage will flash on the display when the batteries are low and need to be recharged. Batter recharging is accomplished through the three pin charging port located on the front of the case. You may run the unit off of a 120 VAC power source such as a transformer, generator, or an inverter. Just plug the provided power cord into the three pin plug located on the top of the faceplate. An auxiliary battery pack is available to provide 24 VDC to the Fault Wizard 2 for extended field use.Changing the velocity of progation setting is easily accomplishing using buttons located on the panel. The Fault Wizard 2's internal system is environmentally shielded and housed in a very durable rotationally-molded polyethylene case. Three handles are attached to the case for convenient carrying by one or two people.
