Affordable. Simple. Easy to Use.
Sensors and Software LMX150™

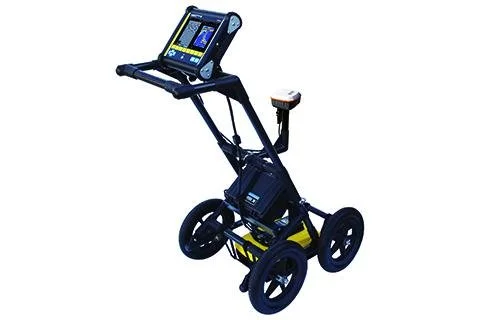

The LMX150™ FINDAR® Ground Penetrating Radar system is a compact, high resolution GPR system for utility locating.
The LMX150 FINDAR provides locating and mapping capabilities to pinpoint the location of buried metallic and non-metallic utilities.
This system features a compact cart allowing you to easily transport to site and use the unit in confined areas, while still handling all field terrains you may encounter in your daily work. The LMX150™ FINDAR®’s intuitive user interface makes it easy to collect and process data for immediate results in the field. The high-resolution GPR sensor is optimized for shallow utilities.
LMX150™ FINDAR® GPR complements traditional pipe and cable locators and allows you to locate targets below the surface such as:
Metal utilities, including pipes and cables
Non-metallic pipes, including PVC and asbestos cement
Concrete storm and sewer systems
Utilities where installed tracer wiring has failed
Underground storage tanks and drainage tiles
Septic system components
Fiber optic cables Non-utility structures such as vaults, foundation walls and concrete pads
Base Price: $21,043
The simple, affordable way to Locate & Mark™ utilities in the field
High visibility touch screen display unit
Free lifetime system software updates
User selectable languages
Metric and US Standard units
GPR Sensor
Patented ultra-wideband (UWB) 500 MHz GPR antenna
Scanning depth up to 3m (10 feet)

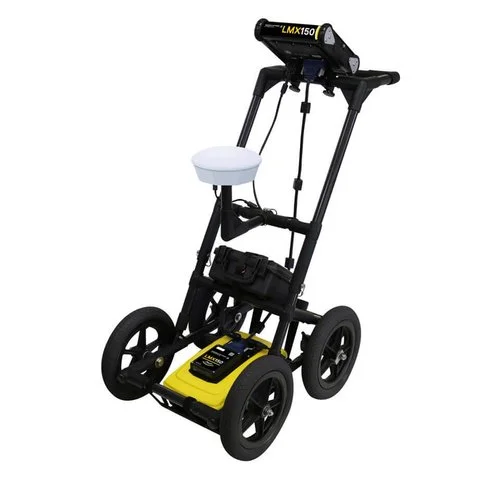

Optional External GPS
For high accuracy positioning and mapping
Lead Acid Gel Cell Battery
Long lasting and swappable

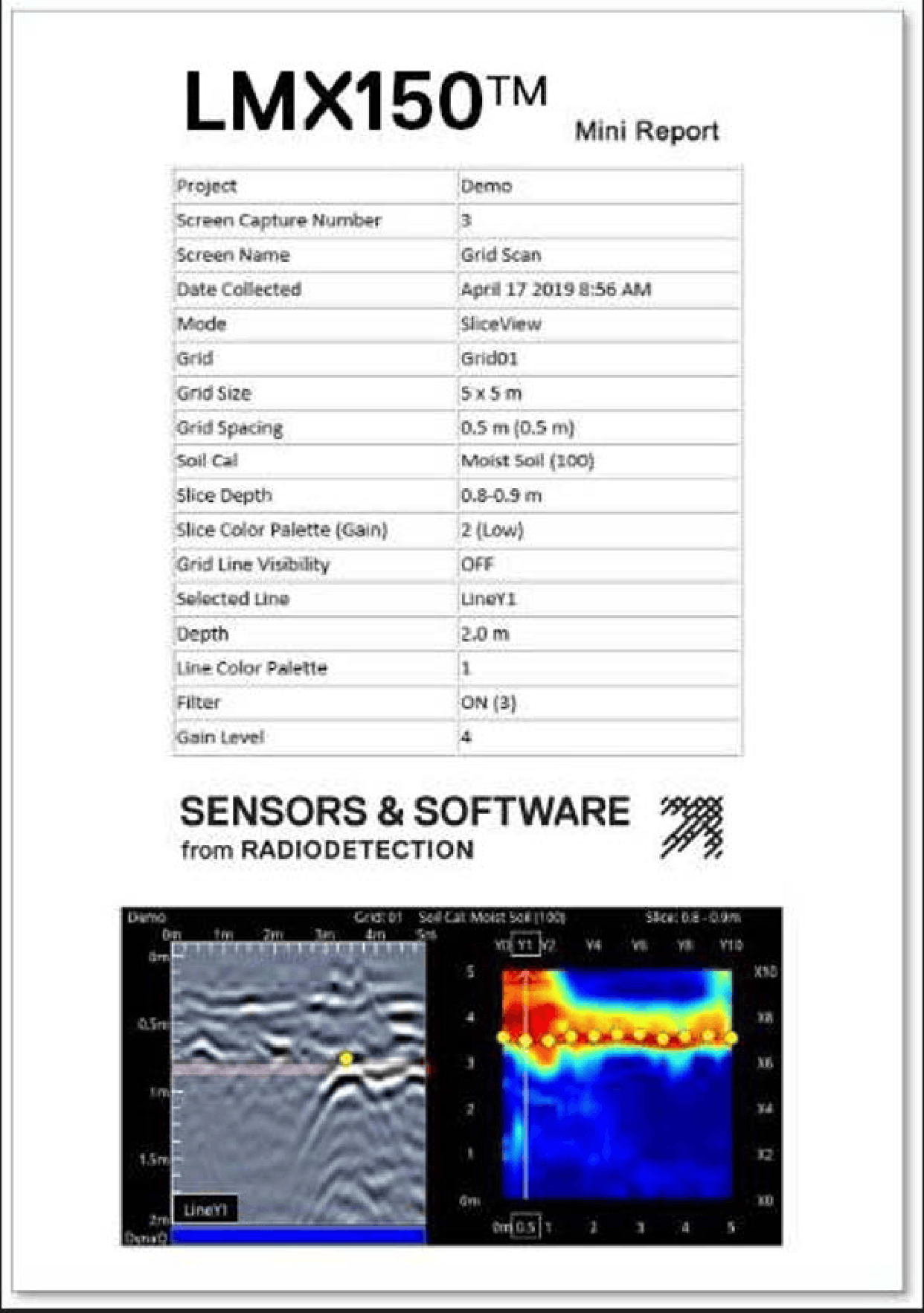

Produce instant on-site reports from your display unit
Integrated GPS receiver
for geo-referencing data
Compact Lightweight Fiberglass Cart Frame
No metal parts that would interfere with GPR signals Rugged, all-terrain cart with integrated odometer, easily maneuverable over any surface
USB for easy data transfer
Built-in Wi-Fi capability
Most advanced precision locators: Sensors and Software LMX150™
WATCH FEATURES OF THE Sensors and Software LMX150™
Technical Specifications are available for download
LMX150™ for Forensics
LMX150™ FINDAR® uses ground penetrating radar (GPR) technology to enable law enforcement to quickly and effectively search/survey for evidence buried under the ground.
The advantage of GPR compared to other commonly-used subsurface search technologies, such as metal detectors, is its ability to detect both metallic and non-metallic objects. LMX150™ FINDAR® can locate:
Clandestine graves
Drugs or money buried in metal or plastic containers
Buried weapons and ammunition stashes
