Jameson Live Gas/Water Rodders
Fiberglass rod with tracer wire and grounding with integrated Stuffing Box that locates live plastic lateral gas lines from meter to the main.
Use Jameson Live Tracer™ Traceable Rodder with transmitter and receiver to locate live plastic gas service lines from meter to main. Connect transmitter to Live Tracer™ to energize unit with specific frequency. When energized rod is pushed into pipe, signal radiates out to surface where a receiver detects the frequency. The entire buried pipe can be traced and marked continuously from above ground by one man without digging.
Jameson Live Gas/Water Rodders
| Stuffing box | Connects to any riser's shut off valve |
| No blow-by | No blow-by while feeding rod into live line up to 125 PSI |
| Bullet tip | Small bullet tip guides rod from riser to lateral transition |
| Line tracing | Use any transmitter and receiver to noninvasively trace gas line from above ground |
| Grounding | Includes wire and clip for static grounding |
| Included | Stuffing Box and Accessory Kit included |
| Dimensions | 22" x 17" x 7" |
| Field evaluated | Field evaluated by GTI |
Built for safely feeding rod into live gas or water lines — call us if you'd like help confirming the right setup for your job.
Please note: Specifications are provided by the manufacturer and are subject to change without notice. Locator Guys is an authorized dealer and does not manufacture this equipment. For technical questions about specifications, compatibility, or warranty terms, contact the manufacturer directly. We are glad to help you get to the right person.
15-316-100-GL
Live Tracer™ Rodder – Gas & Water Service Lines, 3/16 in. x 100 ft.
15-316-150-GL
Live Tracer™ Rodder – Gas & Water Service Lines, 3/16 in. x 150 ft.
15-316-200-GL
Live Tracer™ Rodder – Gas & Water Service Lines, 3/16 in. x 200 ft.
15-316-250-GL
Live Tracer™ Rodder – Gas & Water Service Lines, 3/16 in. x 250 ft.
15-316-300-GL
Live Tracer™ Rodder – Gas & Water Service Lines, 3/16 in. x 300 ft.

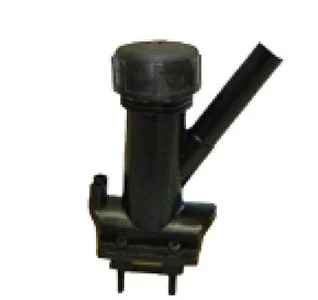

Electrofusion Insertion Tapping Tee For 2" Gas Main Line
Attach stuffing box to electro fusion insertion tap tee (patent pending).
Insert traceable rod into gas main with no blow by. Use with transmitter and receiver to trace line from above ground.
Part Number
16-14-600 - 600' X 1/4" Locating Rodder with Stuffing Box and Accessory Kit
16-2-TEE - Electrofusion Insertion Tapping Tee
Jameson Lateral Gas Line Tracer Kit:
Fiberglass Rod and Reel with Integrated
Stuffing Box and Grounding Equipment
15-316-100-GL - 3/16” X 100’
15-316-150-GL - 3/16” X 150’
15-316-200-GL - 3/16” X 200’
15-316-250-GL - 3/16” X 250’
15-316-300-GL - 3/16” X 300’
15-316-350-GL - 3/16” X 350’

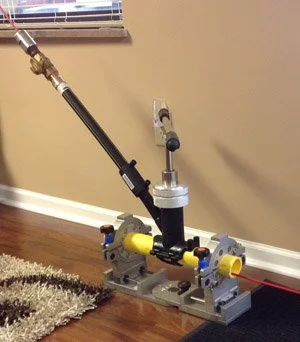

Jameson Lateral Gas Line Tracer Kit with Ball
Valve* and 2” Nipple
15-316-100-GLV - 3/16” X 100’
15-316-150-GLV - 3/16” X 150’
15-316-200-GLV - 3/16” X 200’
15-316-250-GLV - 3/16” X 250’
15-316-300-GLV - 3/16” X 300’
15-316-350-GLV - 3/16” X 350’
15-SB - Stuffing Box Only
15-146-GL - Gas Tracer End Ferrule Repair Kit
* Ball Valve allows gas to be shut off if the primary riser valve fails.
