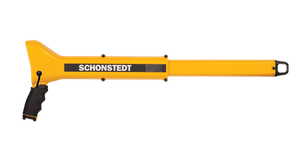

Schonstedt GA-92XTd Magnetic Locator
One hand operation makes finding underground pipes and utilities faster, providing both audio and visual indication of ferrous objects up to 16 feet underground.
Schonstedt portable utility locating equipment is the best underground utility locator equipment for sale today on the market.
GA-92XTd Features
GA-92XTd with Membrane Switch & Precision Signal Strength Indicator
Feedback from our customers has always been vital to driving product innovation at Schonstedt. Our popular GA-92XTd magnetic locator was introduced in 2002 and quickly became known as the most portable and easy-to-use locator on the market.
Extended mode for great accuracy; retracts for easy carrying and storage
Fingertip control of volume and sensitivity
Quick change battery compartment
One hand operation makes finding faster, providing both audio and visual indication of ferrous objects up to 16 feet underground. So go ahead, make your move to the Schonstedt GA-92XTd.
You’re a highly trained, experienced professional but carrying heavy tools is still part of the job. When you have your hands full on the job site, carry the XTd on your hip. With one hand, you can detect the magnetic fields of all ferromagnetic objects property markers, manholes, septic tanks, well casings, valve boxes, cast iron pipes, steel drums, unexploded ordnance up to sixteen feet below the surface.
Schonstedt GA-92XTd
Core Specifications
Introduced in 2002, the GA-92XTd quickly became known as the most portable and easy-to-use magnetic locator on the market. One-hand operation and an extendable design make finding ferrous objects faster, even with your hands full on the job site. Here is what it does, at a glance.
| Locator type | Magnetic locator for ferrous objects — property markers, manholes, septic tanks, well casings, valve boxes, cast iron pipes, steel drums, and unexploded ordnance, up to 16 feet below the surface |
| Design | Extends for greater accuracy and retracts for easy carrying and storage; membrane switch with fingertip control of volume and sensitivity |
| Operation | One-hand operation with audio and visual indication; quick-change battery compartment; can be carried on the hip |
| Battery indicator | 4-segment LCD |
| Gain | 4-level LCD — Low (L), Medium (M), High (H), Extra High (XH) |
| Volume | 3 levels — Muted, Medium, and Maximum |
| Input power | One 9V battery |
| Battery life | 24 hours (intermittent use) |
| Operating temp | -13° to 140°F (-25° to 60°C) |
| Overall length | Open — 26" (66 cm) Closed — 15.5" (39 cm) |
| Nominal sensor spacing | 9.5" (24 cm) |
| Weight | Approximately 2.4 lb (1.1 kg) |
| Water and dust resistance | Rated IP54 |
Built for professionals who need speed and portability on the job — call us if you'd like help confirming the right setup for your job.
Please note: Specifications are provided by the manufacturer and are subject to change without notice. Performance in the field depends on soil conditions, target material, and nearby interference, so figures listed here are typical rather than guaranteed. Locator Guys is an authorized dealer and does not manufacture this equipment. For technical questions about specifications, compatibility, or warranty terms, contact the manufacturer directly. We are glad to help you get to the right person.
