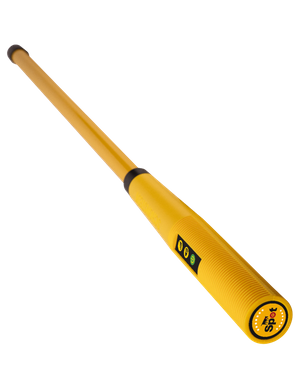

Schonstedt Spot Magnetic Locator
X marks the spot. Find it with the Spot magnetic locator from Schonstedt- our best magnetic stick locator.
Spot Magnetic Locator
Now comes Spot, with engineering and accuracy equal to the GA-52Cx, in a sleek, ultralight-weight package with improved ergonomics. The Schonstedt Spot Magnetic Locator is rated IP54 and comes with a 7-year warranty! If you’re looking for High Accuracy at a Lower Cost, put Spot on the trail of your next locate!
Schonstedt Spot
Core Specifications
Spot delivers engineering and accuracy equal to the GA-52Cx, in a sleek, ultralight-weight package with improved ergonomics. Rated IP54 and backed by a 7-year warranty, Spot is built for high accuracy at a lower cost. Here is what it does, at a glance.
| Audio output | Frequency increases or decreases with signal strength (gradient field intensity); range 30 to 4000 Hz |
| Depth detection | Up to 18 ft deep (5.48 m), object dependent |
| Low battery indicator | 1/2-second audio beep, every 13 seconds |
| Gain | 5 levels — Extra Low (1), Low (2), Medium (3), High (4), Extra High (5). Audio beeps correlate with gain setting (one beep for #1, two beeps for #2, and so on) |
| Volume | 2 levels — Medium and Maximum |
| Input power | One 9V battery |
| Battery life | 24 hours (intermittent usage) |
| Operating temperature | -13° to 140°F (-25° to 60°C) |
| Overall length | 42.3" (107.4 cm) |
| Nominal sensor spacing | 20" (50 cm) |
| Weight | 2.0 lb (0.9 kg) |
| Water and dust protection | Rated IP54 overall; waterproof up to 27" (58 cm) from the bottom tip |
| Warranty | 7-year warranty |
High accuracy at a lower cost — call us if you'd like help confirming the right setup for your job.
Please note: Specifications are provided by the manufacturer and are subject to change without notice. Performance in the field depends on soil conditions, target material, and nearby interference, so figures listed here are typical rather than guaranteed. Locator Guys is an authorized dealer and does not manufacture this equipment. For technical questions about specifications, compatibility, or warranty terms, contact the manufacturer directly. We are glad to help you get to the right person.
