Mini Sondes for Precision Pipe & Duct Locating
Navigate tight bends, small-diameter pipes, and hard-to-reach underground lines with high-performance mini sondes. These compact, self-contained transmitters are designed for precision locating inside sewer lines, ducts, and nonmetallic utilities—delivering accurate signal tracking where larger sondes can’t go.

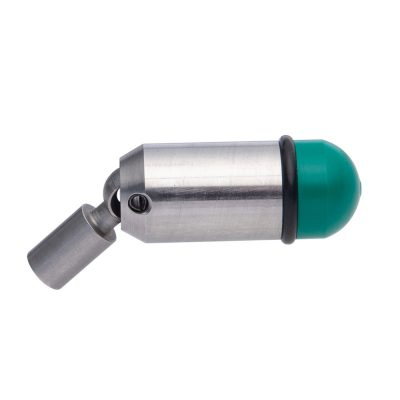

FM-05 | 512 Hertz Mini Snakable Transmitter
For locating in small lines and p-traps
The smallest snakable transmitter in our 512Hz line. This mini transmitter still has the power to get the job done. The FM-05 will help you locate in small cast iron and nonmetallic lines and with the swivel drophead as the battery cap it will allow you to pass through P-traps and tight elbows. Runs on Alkaline batteries only. Silver Oxide will not work.
- Battery caddie and 2-357/A76 button cell Alkaline batteries included
- Drophead is included with a size 12-24 female threaded end
- Easily attaches to a 3/16” push rod
- Replacement dropheads are available for purchase
- Water tight

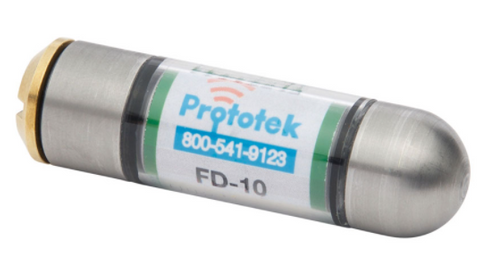

FD-10 | 512 Hertz DuraSonde Transmitter
With its new and more durable and compact design the FD-10 is perfect for locating in lines as small as 2 inches. The FD-10 transmits using the industry standard 512 Hz frequency for locating in cast iron and nonmetallic lines.
- Stainless Steel head for durability
- Encased in a strong polycarbonate tube
- Watertight
- Brass battery cap and 2 N cell batteries included
- Dropcap available for use with 1/4″ pushrods (sold separately)
- Our Spring Carriers are recommended to help protect your transmitter
