Radiodetection RD8100

Engineered to deliver high precision for damage prevention when locating buried cables and pipes.

RD8100, our most advanced precision locator range for sale, is built on this pedigree for performance, quality and durability. Containing a unique arrangement of 5 antennas, it allows you to choose the optimum level of precision for the job in hand. Integrated GPS and usage-logging options automatically generate data for customer reports, or in-house quality and safety audits to promote best working practices.

The Radiodetction 8100 is the top of the line locating and fault finding systems on the market and offer extraordinary features at a fair price. They possess the capability to find up to a 2 meg fault, and can both locate and fault find at the same time using one simple hookup.

The RD 8100 transmitter have a volt ohm meter to test all wires, saving time for the work crew and helping to restore service in a timely manner.

The RD 8100 receiver has an arrow locator which initially points to the fault and reverses once the fault has been passed. A compass works to orient the blades of the receiver to give the direction of your locate for either cables or pipes. The RD receiver also indicates if there are multiple faults down the line. Up to five antennas can be used, increasing the accuracy of your locate and fault find.

A simultaneous readout is provided for both depth and current. The current readout comes directly from the transmitter, not the signal strength, in order to help with bleed over effect. Depths of up to 20’ are provided in real time within a margin of 5%. The addition of arrows are used to simplify locates, along with the Guidance mode feature- our version of cruise control. The Wide Peak mode can be used in finding very deep cables.

The Radiodetection 8100 locator range has built-in safety features including:

  • Visual and audio warnings of shallow cables.

  • Dynamic overload protection which filters out any high KV lines in the area.

  • Power filters to establish if a single large power signal stems from one or multiple sources.

  • Peak antenna to identify lines leading both to and from a transmitter.

  • Enhanced self-test.

Devices have ingress protection IP65 for tough environments. The eCert calibration system enables remote calibration of equipment without any downtime. All devices come with a 3-year warranty, free on-site training, and free use of a loaner device for the system’s lifetime. C&S Solutions is the factory authorized repair and service facility for Radiodetection devices.

Making complex locates simpler

With utility infrastructures becoming more complex, locate professionals require more powerful tools to simplify the task of distinguishing between and tracing different utilities.

CD (Current Direction)

Identify your target amongst a number of parallel utilities by applying a specialized CD signal from the Tx-10 transmitter. CD arrows displayed on the locator confirm you are tracing your target.

Trace high-impedance utilities with 4 kHz

The 4 kHz locate frequency enables lines such as twisted pair telecoms or street lighting to be traced over longer distances. Since such utilities are often found in areas of dense infrastructure, you can combine 4 kHz with CD to improve trace accuracy.

Use Power Filters™ to pinpoint and discriminate between power cables

When a signal transmitter can’t be connected, tracing individual power lines through dense networks can be a real challenge. Conflicting or powerful signals confuse or combine to create a wash of signal.

A single key press uses the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark.

Speed combined with accuracy – Peak+ Mode

Peak+ mode allows you to add either Guidance or Null locating to the accuracy of Peak mode.

  • Adding Guidance gets you to the Peak position faster.
  • Adding Null to Peak lets you check for the distortion caused by other utilities, spurs SideStep™ or interference.

Supporting your business

Every locating operation needs to meet the continuing challenges of delivering on-time, high quality work and

increasing value to customers.

Automatic usage -logging with GPS positioning

When equipped with GPS, RD8100 locators automatically capture key locate parameters every second, providing a comprehensive picture of individual locates and allowing you to assess usage patterns over extended periods.

The data generated can be used to ensure adherence to best-practice, or to identify training needs before poor work habits develop.

Additionally, the information can be used for internal audits or shared with partners or clients to evidence task completion, or compliance to service requirements.

Usage data can be exported in multiple file formats – for example KML for Google Maps to confirm where and when work was performed.

eCer t™ – Remote calibration without downtime

Verify and certify the calibration of your locator over the internet using the RD Manager™ PC software package without returning the unit to a service center. Have confidence that the RD8100 is ready for action whenever you are.

CALSafe™

Choose to automatically enforce maintenance or lease schedules by providing a 30 day countdown before the calibration certificate expires.

Support when you need it

The RD8100 is backed with an industry leading 3 year warranty on registration. Our global sales and service network delivers comprehensive technical support and training tailored to your needs.


Getting more from your RD8100 system

Customize the locator to your network frequencies

Up to 5 additional frequencies can be programmed into all RD8100 locators to match it to the signals found on your target telecoms networks.

Accurate surveying with integrated or external GPS

Save up to 1,000 survey measurements, capturing utility depth, and send to a mobile device using Bluetooth. Add positional data with the integrated GPS option, or combine with external GNSS device using the wireless Bluetooth link to get the accuracy that you need.

Fault Find

Combine the RD8100 locator with an accessory A-frame to identify and pinpoint insulation sheath faults to within 4" (10cm).

RD Manager PC software

Set-up, calibrate and update your locator from a PC. Download usage logging and survey measurement data for analysis.

Passive Avoidance

Rapidly check an area before excavation using simultaneous detection of the Passive Power and Radio signals carried on underground cables or pipes.

90V Transmitter output

More locate signal on high impedance target lines – detect deeper and further.

Multimeter function

Assess the target utility using your transmitter – quickly measure line voltage, current and impedance.

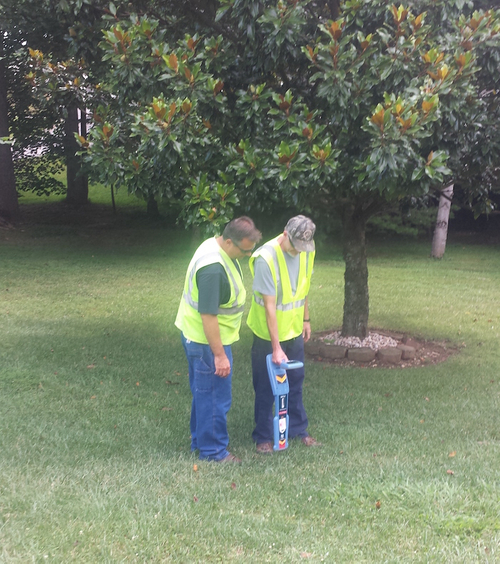

RD8100 Training Session with C&S Solutions


Tools for difficult locates

Simultaneous depth and current read out

Consistency of depth and current measurements gives confidence the correct line is being followed.

Dynamic Overload Protection

Filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.

SideStep™ interference evasion

Adjusts frequency slightly enabling locates in areas prone to interference or where more than one operator is working.

C & S Solutions now offers service and repair on this product. Please contact us for more information.
