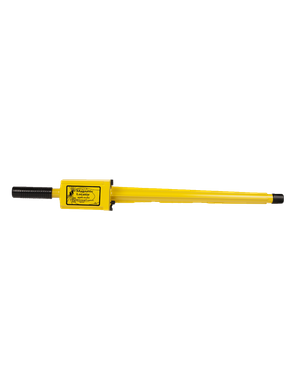

Schonstedt GA-72Cd Magnetic Locator

Designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions.

Schonstedt Magnetic Locator GA 72CD for sale

GA-72Cd Features

Schonstedt’s underground magnetic locators have been setting the standards for reliability and dependability for over 50 years.

The Schonstedt level of sensitivity allows you to find what you’re looking for quickly, without the risk of passing over your target.

Easy-To-Use

The GA-72Cd Locator detects the magnetic field of iron and steel objects. It provides audio detection signals that peak in frequency when the locator’s tip is held directly over the target. The GA-72Cd has the option of nulling or peaking.

Only two Controls! Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

  • Most Rugged
  • Most Popular for UXO and Demining Applications
  • Audio & Visual Output
  • Battery & Sensitivity Indicators
  • Choice of Two Audio Modes: Peak or Null response
  • 4 Levels of Sensitivity
  • 3-digit LCD readout
  • Signal Strength and Polarity Indications
  • No response to aluminum, brass, or copper
  • HeliFlux® sensors
  • Modular construction; high performance components
  • 7-year warranty

The GA-72Cd-ML is designed specifically for military use. Click here to learn more at www.FINDUXO.com

AUDIO OUTPUT

Switch at “A” Signal increases or decreases in volume with gradient-field intensity

Switch at “B” Signal increases or decreases in frequency with gradient-field intensity.

VIDEO OUTPUT

Digital readout and expanding bar graphs indicate polarity (+ or-) and relative

strength of the magnetic field.

INPUT POWER

Supplied by two 9V batteries

BATTERY LIFE

40 Hours (intermittent usage)

BATTERY CHECK

4-segment LCD BATT indicator

OUTPUT

Approximately 40 Hz audio tone on speaker.

Tone frequency increases or decreases with gradient-field intensity.

WEIGHT

Approximately 2.5 lb (1.14 kg)

OPERATING TEMP

-13° to 140°F (-25° to 60°C)

OVERALL LENGTH

34.5" (87.6 cm)

WATERPROOF LENGTH

21" (53.3 cm)

NOMINAL SENSOR SPACING

14" (35.6 cm)

CONSTRUCTION

Rugged, all solid state, polycarbonate & ABS casing
