Opticam XL

The Insight Vision Opticam XL is a professional sewer and drain inspection camera system built for daily field use. It handles pipes up to 12" in diameter and gives operators a clear, stable view of pipeline conditions from the first foot of cable to the last.

Get a Quote
Call 513-922-7444 for Pricing

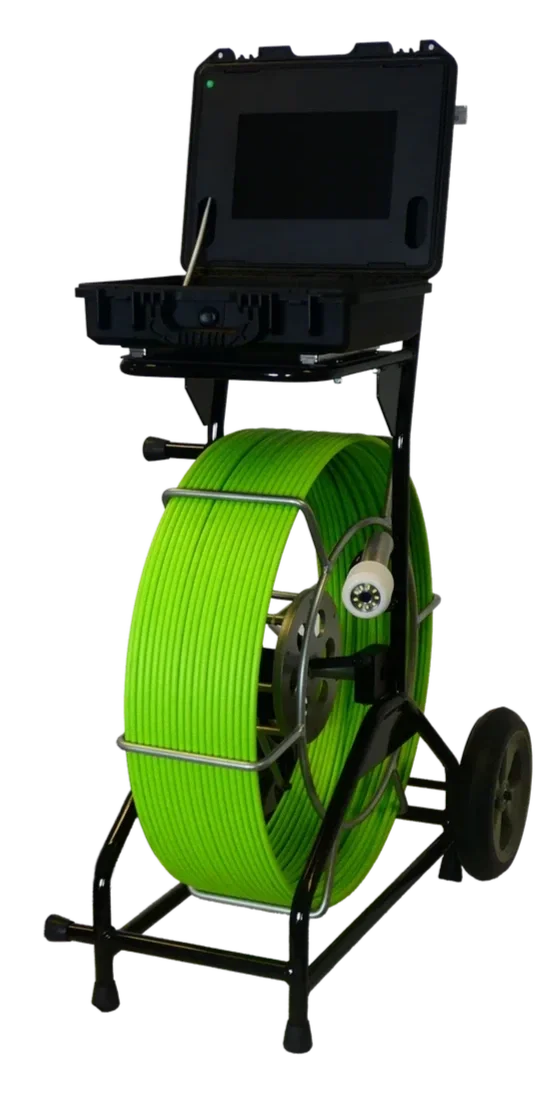

Insight Vision Opticam XL sewer and drain inspection camera system with monitor and coiled push cable on a wheeled cart.

Key Features

  • For use in 3"–12" pipes

  • Field repairable

  • Available in 200' and 300' cable lengths

  • Waterproof

  • Self-leveling camera head

  • App-driven controls

  • 68 lbs.

  • One-touch video recording and snapshots

  • WiFi-connected app, compatible with current iOS and Android devices

  • Built-in professional PDF report builder

  • Add text to any video or snapshot, with adjustable font size, color, and placement

  • Flag problem areas with a single touch

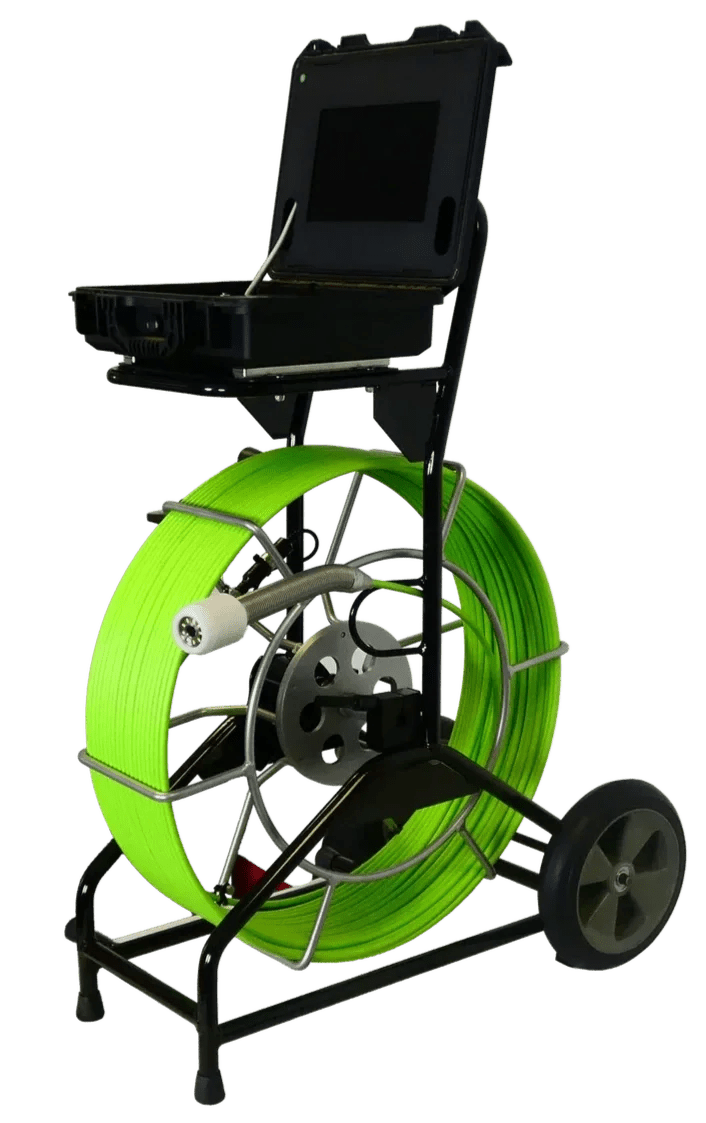

Insight Vision Opticam XL sewer and drain inspection camera system with monitor and coiled push cable on a wheeled cart.

System Includes

  • High quality camera surrounded by high-intensity LEDs for improved visibility

  • Standard 110V AC or up to 6 hours of onboard battery life

  • Built-in, always on 512 Hz Sonde for camera head locating during inspection

  • Touchscreen control with on-screen, full QWERTY keyboard

  • On-screen movable footage counter

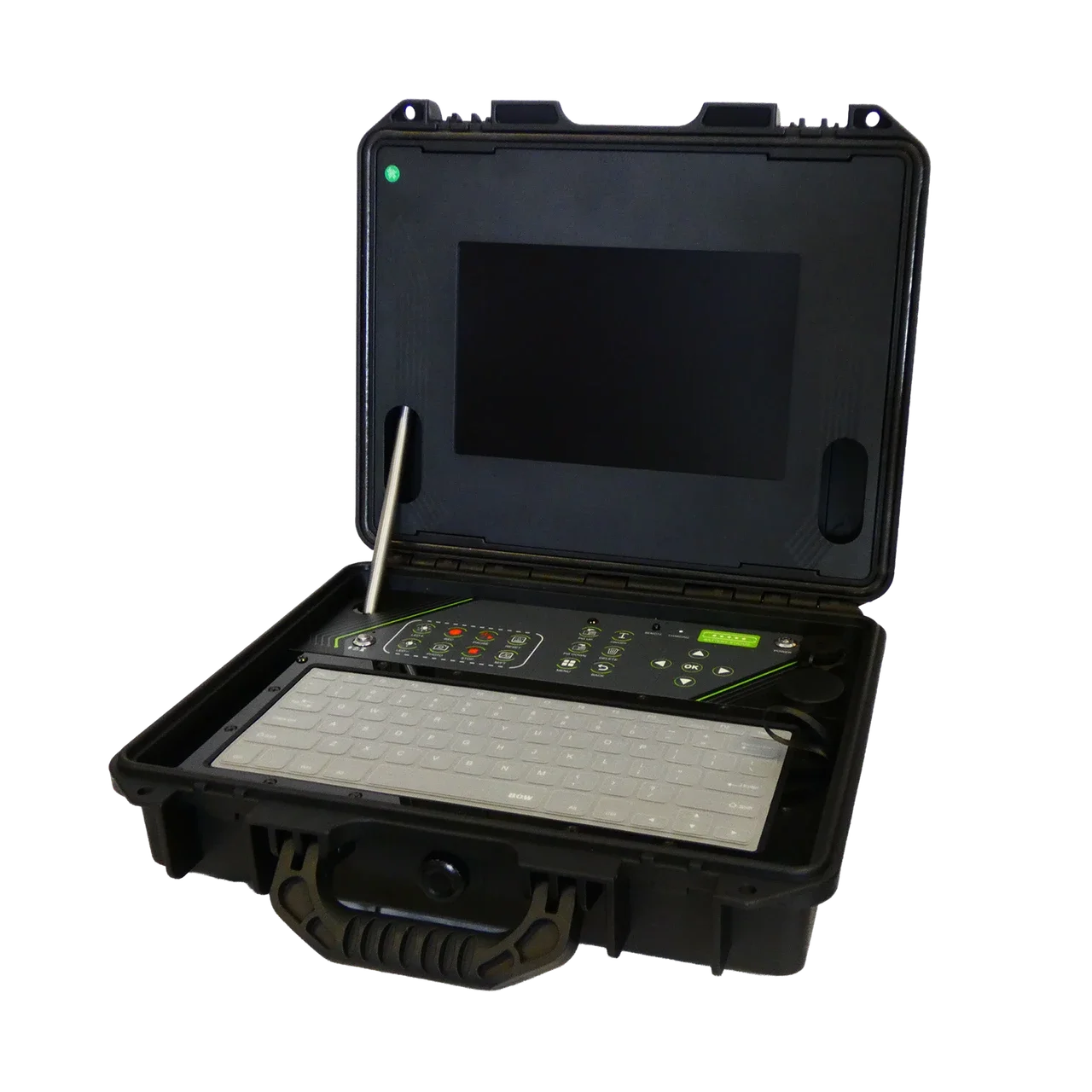

Rugged carrying case open to show a control monitor and keyboard used for field data collection in utility locating.

Opticam XL  •  SKU 203046

Core Specifications

The Opticam XL is a push camera system for sewer and drain inspection, with a self-leveling camera head, a built-in sonde, and app-based recording. Here is the hardware, at a glance.

Opticam XL Specifications
Specifications Values
Pipe sizes 3 in to 12 in
Pushrod length
  • 200 ft
  • 300 ft
Sonde frequency 512 Hz
Power 110 volt or battery with up to 6 hours of life
Weight 88 lbs

Specifications are supplied by the manufacturer and are subject to change without notice. Field figures are typical values, not guaranteed performance, and will vary with site conditions and how the unit is set up. Locator Guys is an authorized dealer, not the manufacturer. Technical and warranty questions should be directed to the manufacturer.
