P374 IS (Intrinsically Safe & Explosion-Proof)

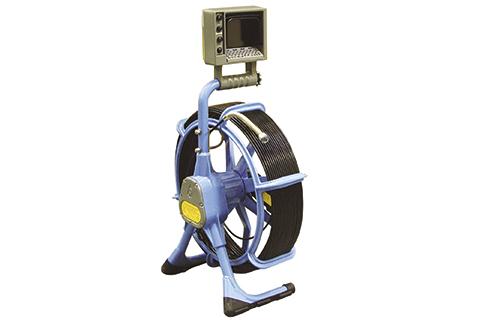

Pearpoint's P374 IS is an intrinsically safe (explosion-proof) pushrod system certified to EEX ia IIC T6 for Zone 0 Hazardous environments such as vessels or pipework within the chemical and petrochemical industries, landfill venting systems, natural gas supply infrastructure, etc. The surface equipment is IP55 rated allowing this system to be used in most types of weather conditions. The P374 IS system is compact and fully integrated making it very easy to transport around.

Key Features

  • Intrinsically safe and Explosion proof
  • System certified to EEx ia IIC T6 for Zone 0 Hazardous environments
  • Coiler running 200 feet (61m) of flexible rod
  • Built-in high resolution footage counter Surface equipment rated to IP55
  • Video/in and Video/out VCR connectors for recording and playback of surveys
  • Integrated high resolution 6.4" Color LCD allowing improved image recognition, retractable sun visor built in reducing the effects of sunlight on the screen
  • Built in QWERTY keyboard
  • A truly waterproof system for operation in most weather conditions, protected to Environmental spec IP55 n CMOS camera technology allowing increased operating time through low power consumption n Maintenance free, white LED’s for increased performance and reliability n Integral electronic meterage counter that displays distance on screen in 0.1m increments which is accurate to +/- 1%

Rod Length: 200ft

Inspection Capacity: 1" to 4"

Focal Length: 0.25" to infinity, manually adjustable

Resolution: 360TVL, 510 x 492 pixels

Sensor Transfer Type: CMOS

Sensitivity: 3 Lux

Viewing Angle: 44o

Camera Construction: 300 series Stainless Steel

Camera Dimensions: 0.94" x 1.22" (Dia. x length)

Control Unit Power: 110 - 240V AC or 12V DC

Video In / Out: Compositer with BNC Connectors

Safety Rating: EEx ia IIC T6. Camera: IS/I/1/ABCD/T6, Coiler: AIS/I/1/ABCD

Coiler Dimensions: 27.5" x 23.5" x 12"

Weight: 46.29lbs

C & S Solutions now offers service and repair on this product. Please contact us for more information.
