Ideal for private locates and 811 mark verification

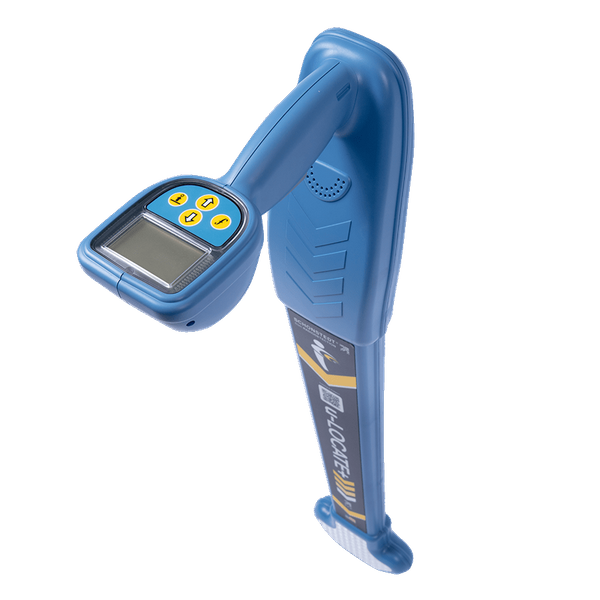

The all-industry utility locator

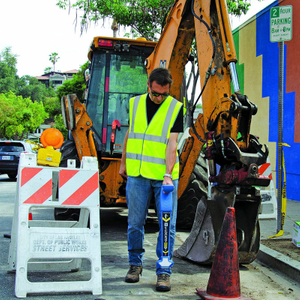

The u-LOCATE series is designed to detect buried utilities including water and sewer lines, electrical cables, gas pipes, and telecom infrastructure. These locators are used by professionals in construction, plumbing, electrical, utility maintenance, and landscaping. Built for consistent performance, the u-LOCATE requires minimal training—ideal for both frequent and occasional users.

Available Models:

  • u-LOCATE: Single-frequency (82 kHz) with passive power detection and depth estimation

  • u-LOCATE+: Dual-frequency (33 kHz and 82 kHz), 512 Hz sonde capability, passive mode, and depth estimation

Key Features and Technical Advantages

Utility Detection Modes

  • Active Mode: Detects metallic pipes and cables using signals from the included transmitter

  • Passive Power Mode: Locates energized power lines without requiring a transmitter

  • Sonde Mode (u-LOCATE+): Supports 512 Hz sondes for tracing non-metallic pipes such as PVC or HDPE

Depth Estimation

  • Provides reliable depth approximations when directional indicators align

  • Accurate for single-line locates, with readings available up to approximately 20 feet deep

Tough, Jobsite-Ready Design

  • Shock-resistant casing built to withstand drops and environmental hazards

  • Water and dust-resistant housing for all-weather use

  • High-contrast display for clear visibility in direct sunlight

  • Streamlined, one-handed operation with tactile controls and visual/audible guidance

Included Accessories

Each kit includes:

  • Transmitter
  • Receiver

  • Direct connection leads

  • Earth stake

  • Magnet

  • Hard-sided carrying case with accessory tray

  • Optional signal clamps available for u-LOCATE+ (2", 4", 5")

u-LOCATE Comparison

Comparison of U-Locate Models

Feature u-LOCATE u-LOCATE+
Operating Frequencies 82 kHz 33 kHz, 82 kHz, 512 Hz (sonde)
Passive Power Detection Yes Yes
Sonde Capability No Yes
Depth Estimation Yes Yes
Signal Clamp Compatibility No Yes (optional accessory)

Contact Us Today

Locator Guys is a certified distributor of Schonstedt locating equipment. For questions about compatibility, on-site training, or bulk orders, contact our technical sales team today.

Explore the u-LOCATE series and equip your crew with dependable, professional-grade locating tools.

Learn More


The uLocate operation manual is available online. We strongly recommend that you periodically check when a revised manual is made available.


The uLocate technical specs is available for download. We strongly recommend that you periodically check when a revised manual is made available.
