Schonstedt Rex Multi-Frequency Pipe & Cable Locator

The Schonstedt Rex is our newest underground utility locator for sale. Multiple frequencies allow you to find any type of underground utility, whether it be water, sewer, electric, telecom, or gas.

Get a Quote
Call 513-922-7444 for Pricing

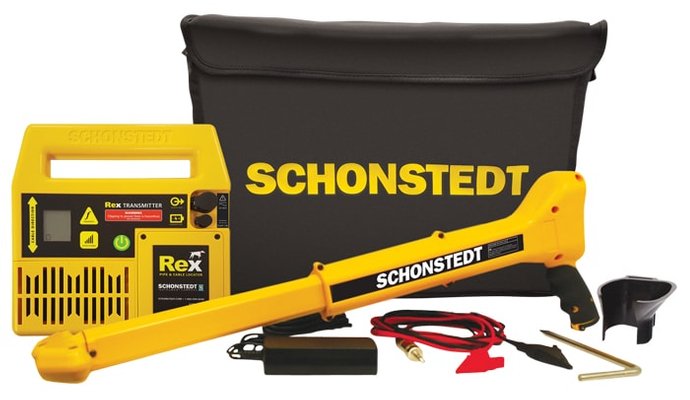

Schonstedt Rex multi-frequency pipe and cable locator kit with receiver, cables, and carrying bag.

Rex Multi-Frequency Pipe & Cable Locator

Rex is Schonstedt’s newest underground pipe and cable locator for sale, recommended for all underground utilities: water and sewer, electric, telecom, and gas.

Rex is a multi-frequency locator with a price tag comparable to single-frequency locators. The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag.

Transmitter

  • OPERATING FREQUENCY:

    82kHz, 33kHz & 512 Hz

  • DIMENSIONS

    10” x 10.25” x 1.75”

    (25.4 cm x 26 cm x 4.5 cm)

  • WATER AND DUST RESISTANCE
    Rated IP54

  • BATTERY LIFE
    8 Hours (intermittent use)

  • OPERATING MODES

    Conductive, Inductive, and Inductive Clamp

  • CHARGING:

    Internal Smart Charger powered by AC/DC power adapter

  • BACKLIGHTING:
    White LED array

  • WEIGHT (INCL. BATTERIES):
    3.5 lbs (1.6 kg)

  • MAX. OUTPUT POWER: (CONDUCTIVE MODE @ 1000 Ω LOAD)

    512 Hz - 1/2, 1, 2 or 5 W

    33 kHz - 1/2, 1, 2 or 5 W

    82 kHz - 1/2 or 1

  • OPERATING TEMP

    -4°F to 140°F (-20°C to 70°C)

  • BATTERY TYPE:
    Rechargeable NiMH pack (12V)
