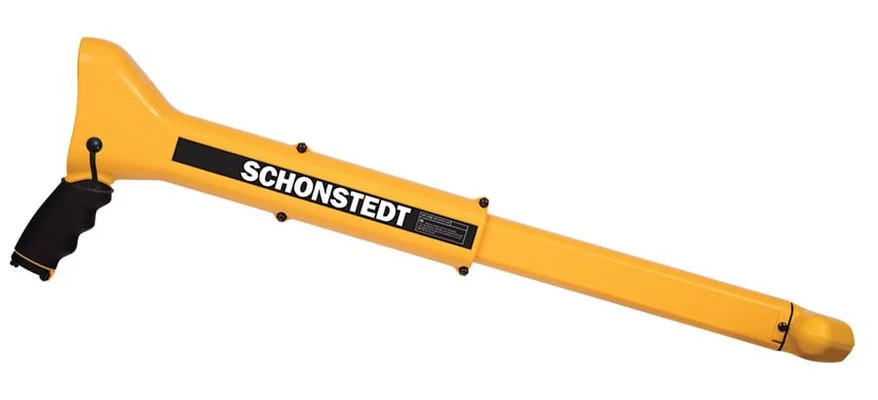

Schonstedt XT-512 Pipe & Cable Locator
The XT-512 is an electronic locator for pipes and cables. It has been optimized for both sonde locating and camera locating, giving you the flexibility to locate multiple underground utilities with one easy and portable locating tool.
Schonstedt XT-512 Pipe & Cable Locator
A compact, portable 512 Hz locator designed to locate sondes, sewer and pipe inspection cameras, and blockages in non-metallic pipe, with simple one-handed operation.
The Schonstedt XT-512 Pipe & Cable Locator is an electronic locator for pipes and cables, optimized for both sonde locating and camera locating. Operating on a 512 Hz frequency, it lets you locate and determine the depth of a sewer or pipe inspection camera, a small sonde, or a blockage in non-metallic pipe. It is built for the jobs where standard metal detectors and many line locators cannot help, because there is no metallic line to follow.
The XT-512 combines the portability of the holsterable XTpc package with the low-frequency sonde and passive locating capability found in larger, more cumbersome locators. The receiver extends for greater sensitivity and retracts for easy carrying on a tool belt, so a single technician can locate quickly and accurately in the field. It is a reliable, easy-to-use choice for utility contractors, plumbers, municipal crews, and inspection-camera operators who need accurate results without a steep learning curve.
Locator Guys (C&S Solutions, Inc.) is an authorized Schonstedt dealer. Every XT-512 includes free on-site training, 24/7 on-call support, and access to our loaner program during service.
Key Features
The XT-512 keeps the controls simple and the readout clear, so operators at any experience level can get an accurate locate.
Dedicated 512 Hz sonde and camera locating.
Tuned to the 512 Hz frequency used by common inspection-camera transmitters and sondes, including units such as the Schonstedt TM50910.
Passive 50/60 Hz detection.
Detects energized power lines passively, with no transmitter required, so you can identify live electrical lines before you dig.
One-button depth measurement.
Determine how deep the target sits with a single button press to help prevent over-digging and accidental strikes.
Digital signal-strength readout.
An easy-to-read LCD displays peak signal strength to help you pinpoint the line accurately.
Audio and visual output.
Both audio and visual feedback help you follow the signal in any job-site condition.
Battery and sensitivity indicators.
Clear indicators keep you aware of power level and sensitivity throughout the locate
Ergonomic and lightweight.
A pistol-grip receiver designed for one-handed operation, light enough to carry comfortably, and compact enough to holster between locates.
3-year warranty.
Backed by Schonstedt's three-year warranty, with free software upgrades during the warranty period.
What the XT-512 Locates — and Where It Shines
Because the XT-512 follows a 512 Hz signal source rather than a metallic line, it is well-suited to jobs where metal detection does not work:

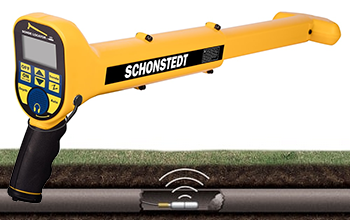

• Non-metallic pipe. PVC, HDPE, clay, and other non-conductive pipe cannot be traced with a magnetic locator. Run a 512 Hz sonde or a camera with a 512 Hz transmitter through the line, and the XT-512 traces its path from the surface.
• Sewer and drain lines. Map a sewer lateral, trace a line from the cleanout to the main, or follow a storm line by tracking the inspection-camera head from above.
• Blockages and obstructions. When a camera or push-rod stops, the XT-512 marks the location and depth of the obstruction so excavation can be precise.
• Inspection-camera heads. Sewer-camera operators use the XT-512 to place an accurate surface mark above the camera anywhere along the run.
• Live power awareness. Passive 50/60 Hz mode helps identify energized cable in the work area to support safe excavation.
Pair the XT-512 with the right signal source for your application. Browse compatible Prototek sondes, sewer inspection cameras, and locating accessories, or contact our team to confirm frequency compatibility before you buy.
Technical Specifications
Schonstedt XT-512 sonde and camera locator — core specifications.
Schonstedt XT-512
The XT-512 is a sonde and camera locator built for pinpointing a transmitter you have already put in the line. Here is what it does, at a glance.
| Locator type | Electronic sonde and camera locator for pipes and cables |
| Operating frequency | 512 Hz (active sonde and camera mode) |
| Modulation | None |
| Passive detection | 50 Hz or 60 Hz power, plus 512 Hz sonde |
| Maximum depth capability | Typically 5 to 8 ft (1.5 to 2.5 m), dependent on the signal level emitted by the sonde or camera transmitter |
| Depth measurement | One-button depth readout |
| Display | Digital LCD readout of peak signal strength |
| Output | Audio and visual |
| Indicators | Battery level and sensitivity |
| Operation | One-handed, pistol-grip receiver, retractable and holsterable design |
| Portability | Compact and lightweight for easy storage and carry |
| Included | Receiver with soft carrying case |
| Warranty | 3-year warranty, with free software upgrades during the warranty period |
Depth readings vary with soil conditions and the transmitter in use — call us if you'd like help confirming the right setup for your job.
Please note: Specifications are provided by the manufacturer and are subject to change without notice. Performance in the field depends on soil conditions, the transmitter in use, and nearby interference, so figures listed here are typical rather than guaranteed. Locator Guys is an authorized dealer and does not manufacture this equipment. For technical questions about specifications, compatibility, calibration, or warranty terms, contact the manufacturer directly. We are glad to help you get to the right person.
