Schonstedt XTpc Pipe & Cable Locator
The XT line offers the best underground utility locating equipment in a small package. This portable utility locator system extends for greater sensitivity and retracts for easy carrying on a tool belt.
The Schonstedt XTpc Pipe & Cable Locator Features

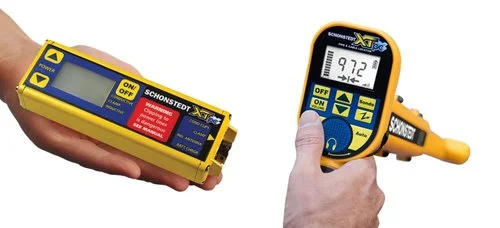

Schonstedt’s innovative designers have created the most portable locator available today. The XTpc delivers the only complete locator system which you can carry on your tool belt. You can fit the industry’s smallest transmitter in your hand or pocket.
The XTpc features simple one hand operation with all controls in easy reach of your thumb. The controls and the LCD display area are large and easy to understand. Clear direction arrows facilitate easy locating and foolproof centering.
This extremely versatile locator also features single button depth calculation. Simply place the receiver directly over the target and press the depth button.
The XTPC is made in two frequencies. In general, 82kHz is useful in tracing gas and water lines while 33kHz is a better choice for tracing electrical lines. You select a single frequency before purchase.
XTPC Specifications Receiver
Operating frequency
82kHz or 33kHz
Battery
One 9V battery
Battery life
18 hours (intermittent use)
Audio output
10–3000 Hz determined by signal strength
0–70 dB SPL (Sound Pressure Level), volume controlled
Max. depth capability
Approximately 19' (5.8 m)
Weight (incl. batteries)
Under 2.8 lbs
Dimensions
Closed:
17.5" × 3" × 8.5"
(44 cm × 7.6 cm × 21.5 cm)
Extended:
27.7 in × 3 in × 8.5 in
(70 cm × 7.6 cm × 21.5 cm)
